PRODUCTS

Referential photo

Poultry Extractors Series

From 30 to 42 inches in diameter.

Helices 30, 36 and 42 inches in 3 Pallas, 4 Pallas and 6 Pallas.

Made of galvanized steel and aluminum propellers.

Ready to be embedded in industrial warehouses.

220 Volt motors - Motors 1/2, 3/4 and 1 HP.

Low noise level - 825 to 1075 RPM.

Flow rates from 7000 to 17,000 CFM.






Referential photo

Turbines Single and Double Check

Made of plastic, aluminum or galvanized steel.

From 5-30 inches in diameter.

Statically and dynamically balanced.











Referential photo

Plastic turbines

Made of ultra-light plastic.

Exterior diameter: 5 3/8 in. (137 mm).

Exterior Height: 7 1/4 in. (186 mm).

Bushing: 1/2 in.

Rotation: CW / CCW.

Immediate delivery - Stock available.






Referential photo

Electric motors for air conditioning 1 axis

Electric Motors 1 Shaft Outside Diameter 1/2 in. 220 V - 1F - 60 Hz - 1075 RPM - 1 Speed.

Powers of 1/6, 1/4, 1/3 and 1/2 HP.

Brands: Emerson, Kielmann, Fasco, A.O. Smith, Rostock, FrigoRex, Quality, etc.

Condensing Units used for outdoor use in vertical or horizontal position.

Used in air conditioning units and commercial and industrial refrigeration.






Referential photo

Electric motors for cavas and broadcasters refrigeration units

Axis motors 1 5/16 "diameter for special Foreign Broadcasters Cavas and refrigeration units.

Refrigerated Cavas used in Supermarkets, Butchers, Fishmongers, Bakeries, Restaurants, Hotels, Hospitals, Florists, etc.

Voltages of 110 and 220 Volts (Single Phase) of various powers in HP.

FASCO brand or similar.





Referential photo

AC electric motors for dual axis 1/2"

Dual Axis Motors 1/2 "OD and along the axes 10 inches each, special for Fan Coils of hotel rooms, clinics, hospitals and local offices and shopping centers.

Voltages in 110 and 220 Volts (Single Phase) of various powers in HP.

Used in Evaporator type: Cabinets, Fan Coils Direct Expansion and Chilled Water, Floor-Ceiling Consoles, etc.

Brands: Kilmann, EMERSON, FASCO, A.O. SMITH, MOTORVENCA, etc.







Referential photo

2-axis motors, fan coil application

The KM 42 engines have application in air conditioning systems fan coil type.

They are available in 115 and 230V, for power of 1/10 to 1/4 HP.

Frame body 42 with double axis 1/2 "diameter, including the installation base.






Referential photo

1 axis motors for condensers

Series motor has its aplicacionen air conditioning systems of condensing units.

They are provided with run capacitor and thermal overload protector.

It offers reversible rotation and the possibility of mounting at any angle.

Available in 115 and 230V, with power of 1/4 to 1 HP.

Frame body axes 48 1/2 "and 5/8" insulation "B", continuous work, autoenfriado by the same unit.






Referential photo

Commercial refrigeration motors

KM series motor shaft 33 has application in refrigeration systems and air conditioning Original Equipment Manufacturers (OEM).

Available in 115V or 230V, for power 1 / 20HP and 1 / 15HP.

Mounted horn, insulation type "A" and thermal overload protector.






Referential photo

Subfractional motors, series km3

The KM3 subfractional engines have application in evaporators and condensers domestic and commercial refrigeration and ventilation in general.

Available in 115 and 230V, for power from 2-50 Watts, have higher efficiency compared to engines of the same type. Sealed aluminum housing. Shaded pole construction.

Alternative mounting at any angle. continuous work, cooled by the same unit.






Referential photo

Diffusers front discharge, FDC series

Diffusers front discharge FDCEDC series are the appropriate equipment for cold storage of fresh and frozen products.

Our diffusers are available in three types of presentation: the first with fin spacing of 4.5 mm for high temperatures, the second with spaces between fins 6 mm for medium temperatures and third with fin spacing of 9 mm for low temperatures.

They possess high corrosion resistance. They are lightweight and easy to install.

Diponibles in different models configured for 230V / 60Hz, equipped with 4-pole axial fans and capacities from 2.15 kW to 21.10 kW, depending on your needs.

To optimize heat exchange coefficient is incorporated them corrugated fins and tubes with internal fins, which allows increased evaporator capacity 1.4 to 1.5 times, compared to the smooth construction.







Referential photo

Condensing units with semi-hermetic compressor, high temperature application

Condensing units are robust equipment providing a reliable and efficient service, made up of various components and high quality accessories, namely compressor, condenser, oil separator, liquid receiver, filter drier, dampener, axial fan, pressure switch of low and high, solenoid valve, sight glass, high and low pressure gauges.

All parts are easily accessible, which greatly simplifies maintenance with guaranteed parts. Key features: compatible with R-22, available in capacities of 3HP to 30HP, high efficiency motor, wide application range, low power consumption, less vibration and low noise.

Kielmann also offers an enhanced version that includes a team of comprehensive protection in a junction box: all electronic components of the unit are prewired, linked to and well organized on DIN rails in a junction box that incorporates electronic devices for system protection such as: contactor, relay timer switch, auxiliary relay, protector phase indicators.

Kielmann the condensing unit is ready to be installed and connected to the power source; plug & play.






Referential photo

Antacids filter driers and particle removers

Antacids filter driers and removers particles are protective devices in refrigeration systems and air conditioning, as they eliminate acidity, traces of moisture and solid particles.






Referential photo

Stone filters

Rechargeable dryer filters help protect the system.

Available in sizes 48 or 100, protected from moisture, particles, acidity, among others.







Referential photo

Sealed filter driers

Sealed filter driers are protective devices in refrigeration and air conditioning, remove traces of moisture, acids and solid particles.

The MSB series filters change the design of the internal structure of the filter dissecante seeking to optimize the surface and therefore greater efficiency; matter is also composed of 75% and 25% Molecular Sieve Activated Alumina.







Referential photo

Start capacitors

Starting capacitors for single phase electric motors, alternating current.

IP54 level of protection against the environment.

Various capacitances, prepared to operate at 125/250/330 VAC.







Referential photo

Up capacitors

Up capacitors used to improve the efficiency of operation of electric motors.

IP65 protection against weathering, 370/440/450 VAC to operate.






Referential photo

Contactor

They are electromagnetic devices that aim to establish or interrupt the current flow, either in the power circuit or control, as soon as the coil is energized.

They are used in air conditioning systems, refrigeration, heating, welding, elevators, washing machines, lighting, etc.

Technical features: alloy contacts silver-cadmium oxide, heavy-duty, ensuring long life. Universal mounting base. horizontal or vertical mounting. Insulation: 130 ° C Class B.







Referential photo

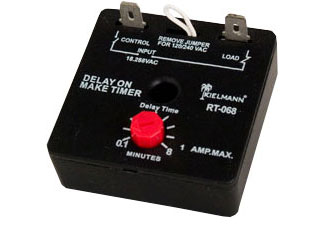

Timers

Retarders are electrical devices delayed drive, function as time switches for both the "delayed start" (Delay on make) mode, preventing the team start to have occurred a short unexpected power failure, and for mode "delay in operation" or "delay under interrupted supply" (delay on break), preventing damage that may be caused by short cycling on computers after an unexpected cut occur in the power supply, obeying in both cases the setting of time scheduled for close contacts.

Available in 24V, 120V and 240V AC.






Referential photo

Bomb of void

Vacuum pumps are portable tools needed to generate the required vacuum levels in the cooling circuits.

Presentations available in 50 and 60 Hz, 1 and 2 stages from 1.4 to 11.5 cfm, from 1/5 to 1 HP, 115 or 230V.

We also offer 24V vacuum pumps that can be recharged with the vehicle cigarette plug, battery-powered vacuum pumps and oil pumps without commercial and domestic application.






Referential photo

Condensate pumps

Pump Removal Condensate is installed with systems and air conditioning and refrigeration, allowing the evacuation and drainage of condensate to drain or collection devices in areas that do not have natural slope, gravity drop or convenient access to outside for that drained, thus preventing damage or deterioration of adjacent materials such as friezes, drywalls, wood, metals, etc., allowing preserve the appearance and general conditions of the original installation.





Referential photo

Rotary compressors

Rotary hermetic compressors are paddle type and discharge at constant pressure.

Less powerful than reciprocating compressor, but much lower noise level.

Designed to be installed in air conditioners for small rooms, dehumidifiers, water coolers, among others.

Available for installation with the appropriate kit for each application, 115 and 208-230V power, capacity 6,000 BTU to 36,000 BTU.






Referential photo

Stopcocks

The bypass valve is a mechanical device that regulates the flow of liquids and gases flowing through a pipe.

The process is carried out by a piece of obstructing part or all of the hole in the pipe.






Referential photo

Access valves or service (bug)

Service valves provide access to air conditioning systems and cooling: check pressures allow, carry loads, purges or testing systems, like refrigerant recovery.

Compatible with various types of coolants and lubricants.






Referential photo

Expansion valves

The expansion valves are precision devices used to meter refrigerant passage to the evaporator, in order to obtain greater efficiency.

Valves Kielmann D100 series are the fixed orifice, from 5T to 120T cooling.






Referential photo

Oil pressure switches

Differential pressure switches for oil, automatically control the oil pressure in refrigeration compressors and protect it against loss of oil pressure.

They have a time delay which is compensated to operate at room temperature; allows proper operation of the compressor during start-up and short interruptions pressure during normal cycle, avoiding false stops.






Referential photo

Pressure switches for CFCs, HCFCs, HFCs - dual high and low

The series of pressure switches is applicable for both systems operation and protection of commercial refrigeration and air conditioning for all types of non-corrosive coolant: CFC, HCFC and HFC.

The switch single pole double throw (SPDT) gives greater flexibility when making electrical connections.

It comes with a capillary 36 "thread connection 1/4" (without capillary and direct thread on request) and includes a universal mounting base, which facilitates installation.
